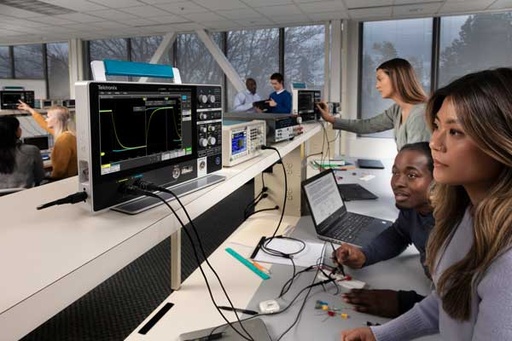

Unlock more space on your bench without compromising performance. At only 1.5 inches thick and less than 4 pounds, the 2 Series MSO is a full-featured, realtime touchscreen oscilloscope in a compact, portable form factor that feels like a tablet. On the benchtop, in the classroom, or to the field, take it wherever your measurement challenges take you.

MSO5 with integrated hard disk: starts automatically in the WIN system. If you take out the hard disk, the MSO5 starts automatically in the Linux system.

Energy Analyser AM-14, power logger for the detection of energy consumption, PQ logger for power power quality measurements

Get the analysis capability of an award-winning oscilloscope on your PC. Analyze waveforms anywhere, anytime. The basic license lets you view and analyze waveforms, perform many types of measurements and decode the most common serial buses - all while remotely accessing your oscilloscope. Advanced license options add capabilities such as multi-scope analysis, more serial bus decoding options, jitter analysis and power measurements.

The AFG3000C series will soon be discontinued and replaced by the full-featured AFG31000 arbitrary function generator.
Existing AFG3000 customers can visit our support site for warranty or service questions.

Application Software Bundles for 4,5 & 6 Series MSOs

With the largest display in class, improved low-level signal measurement accuracy and industry-leading probe performance, the 3 Series MDO sets a new standard for bench oscilloscopes. Whether you’re testing your baseband design for IoT or just for simple EMI sniffing, the 3 Series has a unique true hardware spectrum analyzer built right in with superior RF test performance and guaranteed RF specifications.

AM-15-Plog power quality analyzer and recorder for the field, IP67, 4 voltages, 5 currents, WLAN, web interface, optionally with display

flexible recorder for power applications, 4 to 16 channels, configurable, with or without GPS synchronisation, DIN rail mounting, possible configurations: PFR, PQ, PMU, DFR, PM, all-in-one

power analyser AM-10-PA2 with 4 U and 5 I, up to 144 kSamples, 24 bit

With the largest display and highest available channel count in its class, the 4 Series offers unprecedented insight in a bench-friendly package. And its made-for-touch user interface works exactly as you'd expect.

only sold via Tektronix Encore, new model is the 5B Series MSO

6 Series Low Profile Digitizer, 2U rack ready, 1GHz to 8 GHz, 4 SMA inputs with low noise, 12-bit ADCs, 25GS/s and 125Mpts record length, 1-year warranty, Certificate of Traceable Calibration Standard

5 Series MSO Low Profile, 2U rack height, rack mount included, 500 MHz to 1 GHz, 8 Flex Channels, 12-bit ADCs, 6.25GS/s, 3-year warranty, Certificate of Traceable Calibration Standard

probe tips, multimeter probes, adapter, suitcases, etc.

up to 30MHz bandwidth, max. 3000A AC current measurement capability, 1 typical accuracy, 1.6mm coil cross-section diameter, standard BNC-interface

bandwidth up to 2.5MHz, switchable Current Range: 10A / 100A, compact design with reliable performance, USB power supply, no need extra adapter, compatible with any BNC-type oscilloscope
